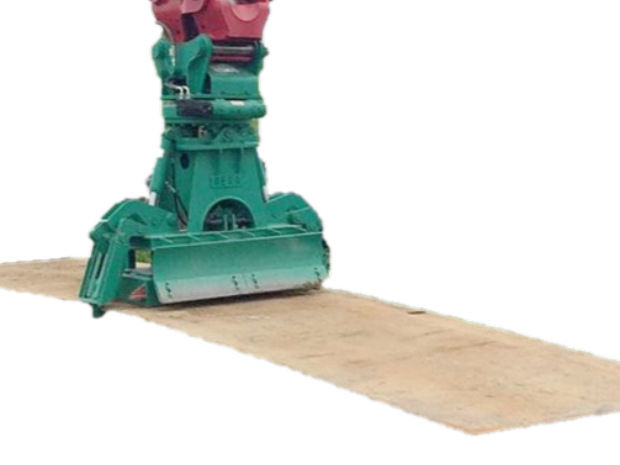

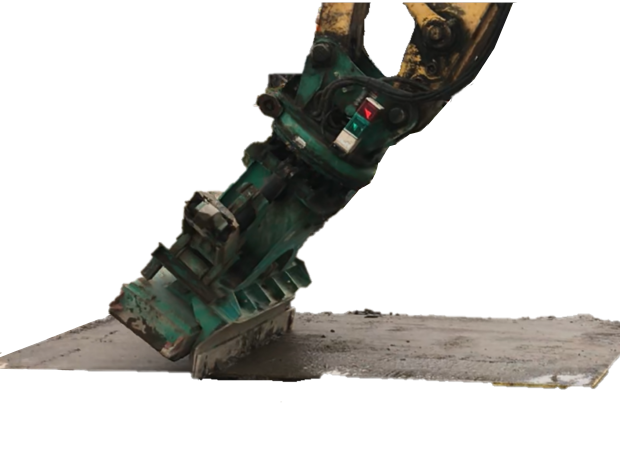

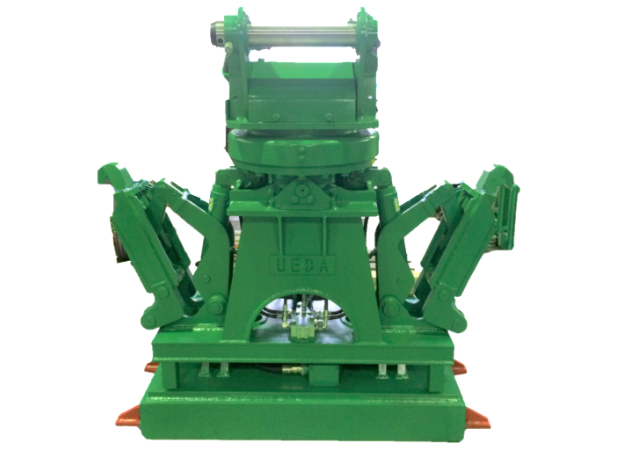

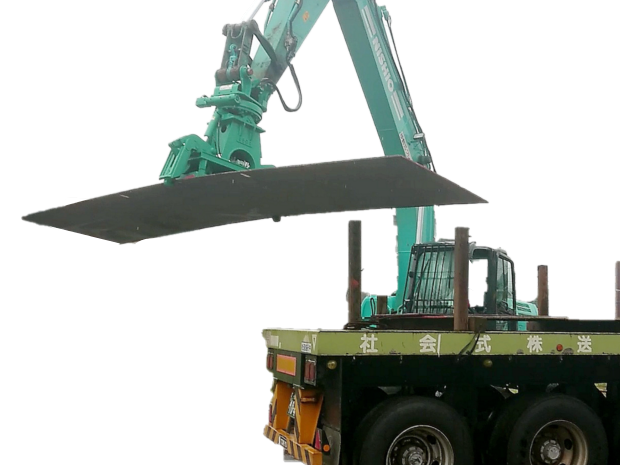

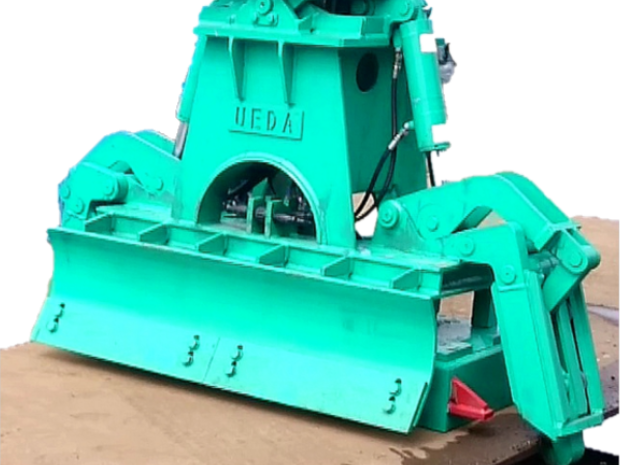

Steel Plate Magnet (24V)
Features :
- Double protection with magnet and clamp. Lifting with magnet, holding with clamp.
- 360 rotation degree.
- No need with hooks and chains, much increased working efficiency.
- Loading and unloading more precisely
Specifications
| Model | KMG-200 |
|---|---|
| Excavator Weight (ton) | 12 - 25 |
| Magnet Dimensions (mm) | 1,200(L) x 400(W) x 150(H) |
| Voltage (V) | 24 |
| Electric Current (A) | 48 |
| Max. Lifting Weight (kg) | 2,500 |
| Max. Clamp Width (mm) | 1,200 - 1,740 |
| Rotation | 360 degree |
| Oil Pressure (MPa) | 20.6 |
| Overall Dimensions (mm) | 1590(L) x 680(W) x 1550(H) |
| Overall Weight (kg) | 1380 |
