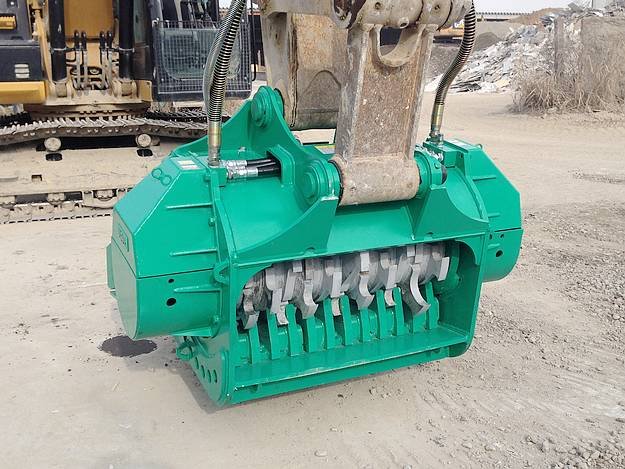

Bucket Smasher
Features :

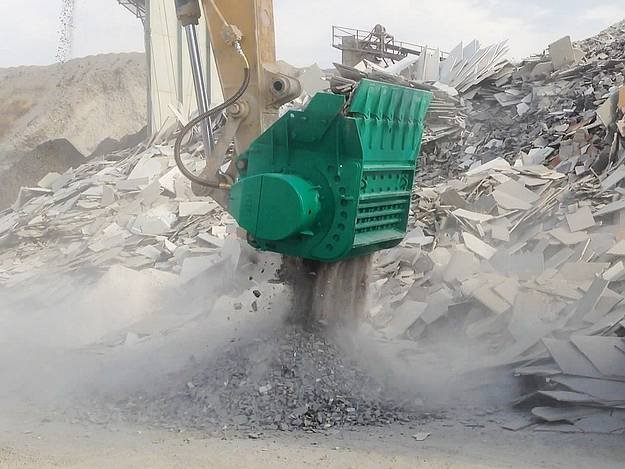

- This smasher can use to crush varity kind of material such as waste concrete, waste plastic and etc.

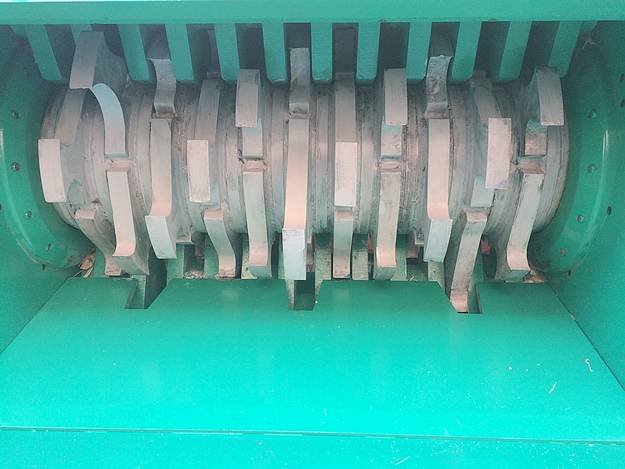

- Blade are made of Hardox, Overlay welding is possible.
- Direct drive motor makes normal and reverse rotation possible.
Specifications
| Model | UF-120/A | UF-200/A | UF-300/A |
|---|---|---|---|
| Excavator Weight (t) | 10 ~ 15 | 20 ~ 25 | 30 ~ 40 |
| Bucket Capacity (m³) | 0.38 | 0.55 | 0.85 |
| Rotor Speed (rpm) | 100 | 100 | 100 |
| Oil Pressure (Mpa) | 28 | 28 | 32 |
| Oil Flow (l/min) | 180 | 300 | 350 |
| Opening Size (mm) | 900 x 500 | 1300 x 650 | 1500 x 650 |
| Discharge Size (mm) | 150 | 150 | 150 |
| Overall Dimensions (mm) | 1100 x 950 x 1000 | 1440 x 1130 x 1250 | 1600 x 1200 x 1650 |
| Overall Weight (kg) | 1470 | 2280 | 2900 |
| Production Efficiency (t/h) | 2 ~ 5 | 4 ~ 7 | 6 ~ 10 |
